AquaPave® Installation

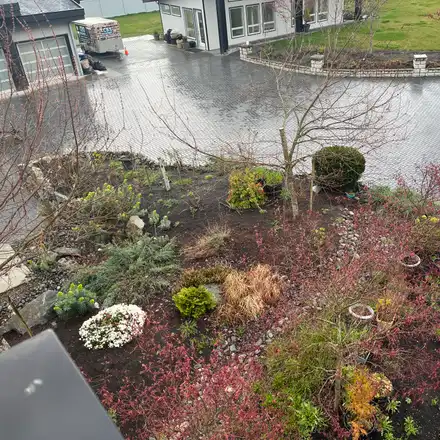

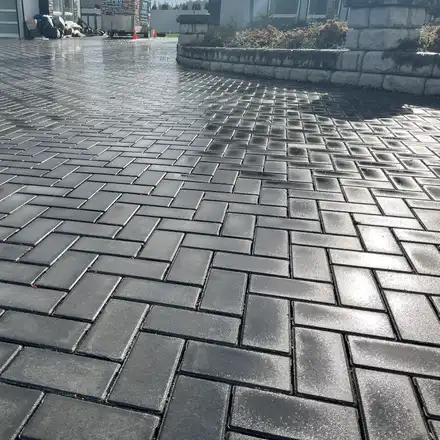

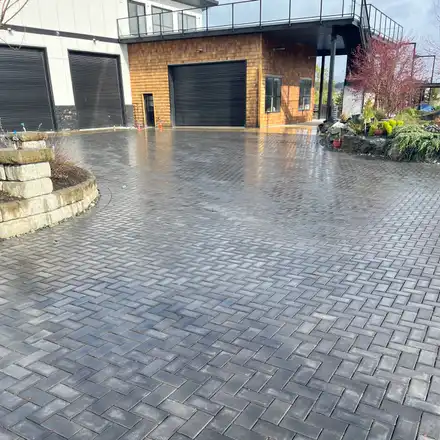

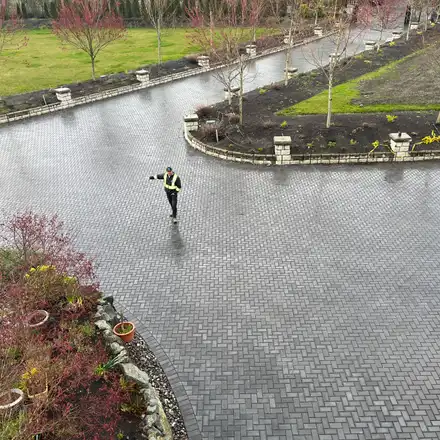

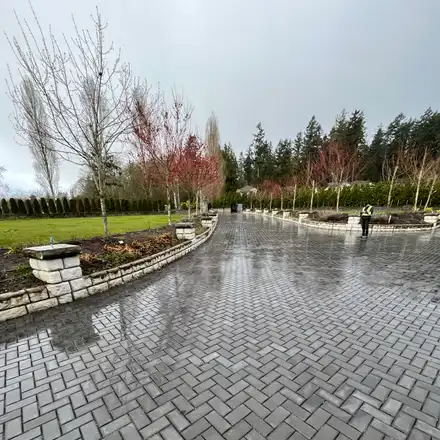

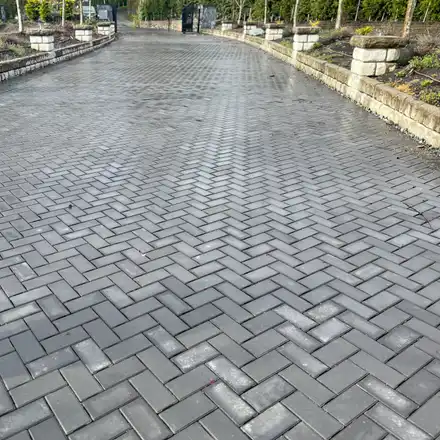

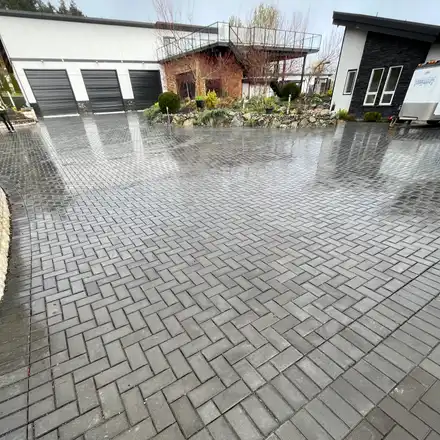

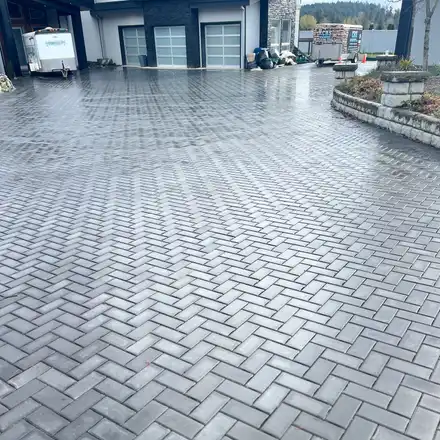

CBS Masonry Ltd recently completed a 15,000 square foot driveway AquaPave® System installation in Central Saanich.



We installed a paver which is eight centimetres in thickness, and underneath the eight centimetre paver we have eight inches of three quarter clear crushed rock with a top layer of bird’s eye gravel. We start off by excavating approximately 12 to 14 inches below grade. The first layer of fabric cloth is a Geotextile, which is your standard fabric cloth. On top of that we have the eight inches of three-quarter clear gravel. On top of that we have what’s called the SC1000 with an Embitex layer of cloth, which essentially has living microfibres in the cloth which cleans the water as it drains through the system.

How AquaPave® Works

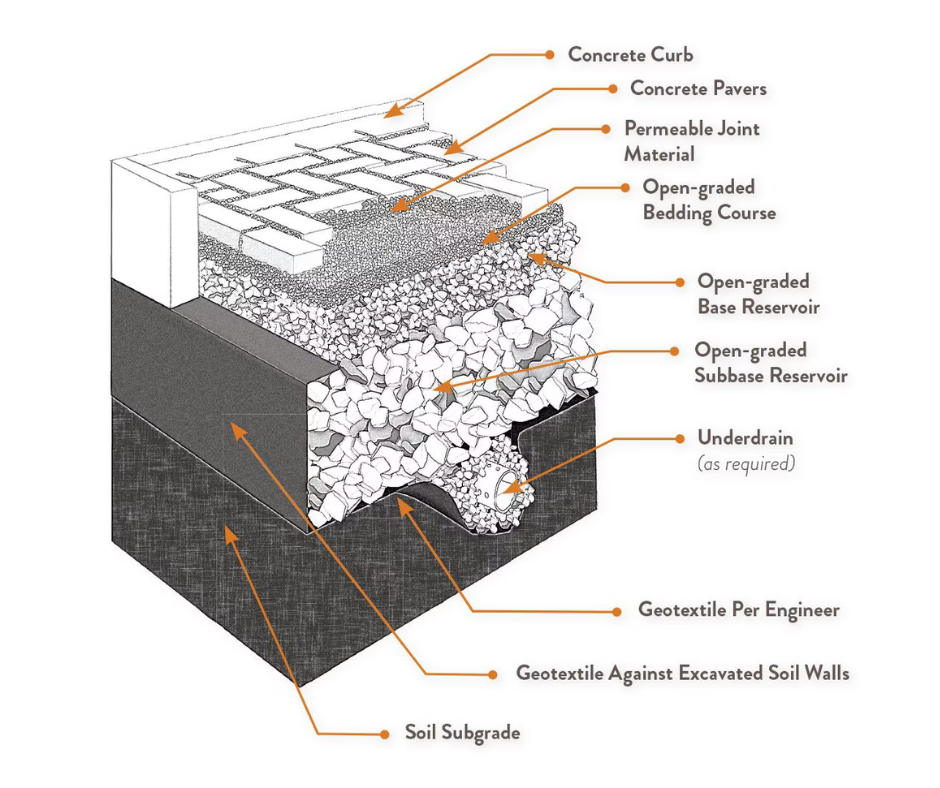

AquaPave Diagram

This is a self-permeable system, so the water drains freely with no sand, and it is all aggregate. Once we’re finished with the install of the pavers, we installed the concrete edging with three-quarter drain rock to help keep everything tied in together and to give the perimeters of the driveway that extra pop!

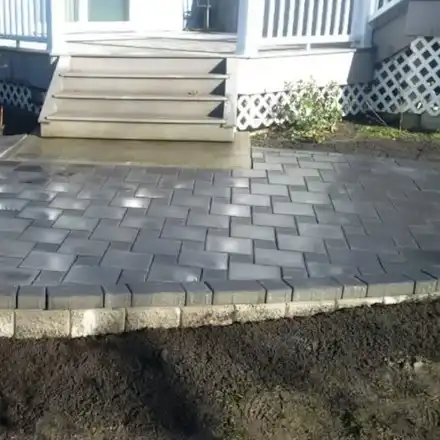

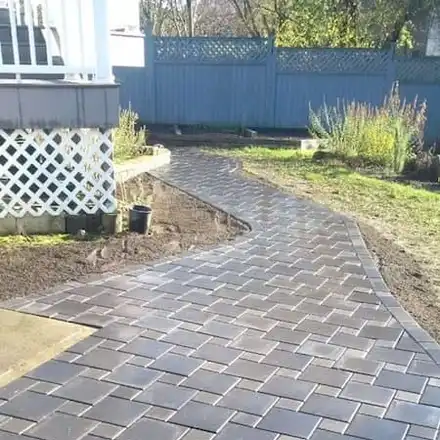

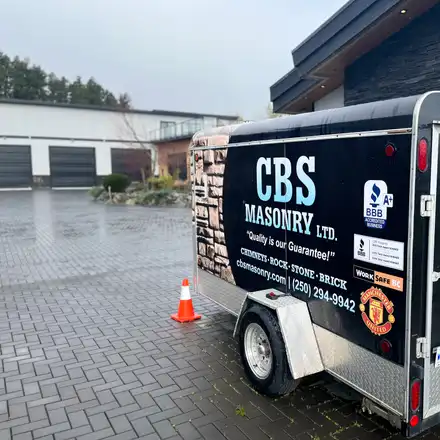

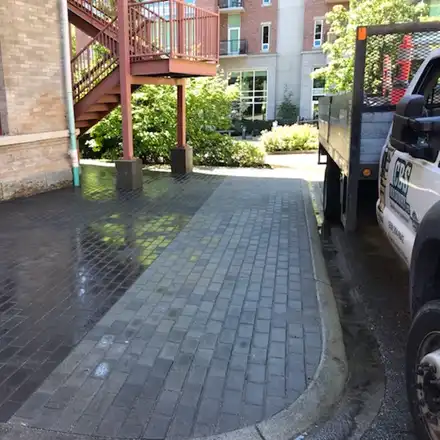

Inspiration Gallery

View some of our completed projects below. If you would like to have us work on your next project, please do not hesitate to call or send us a message.
